Parts
doors

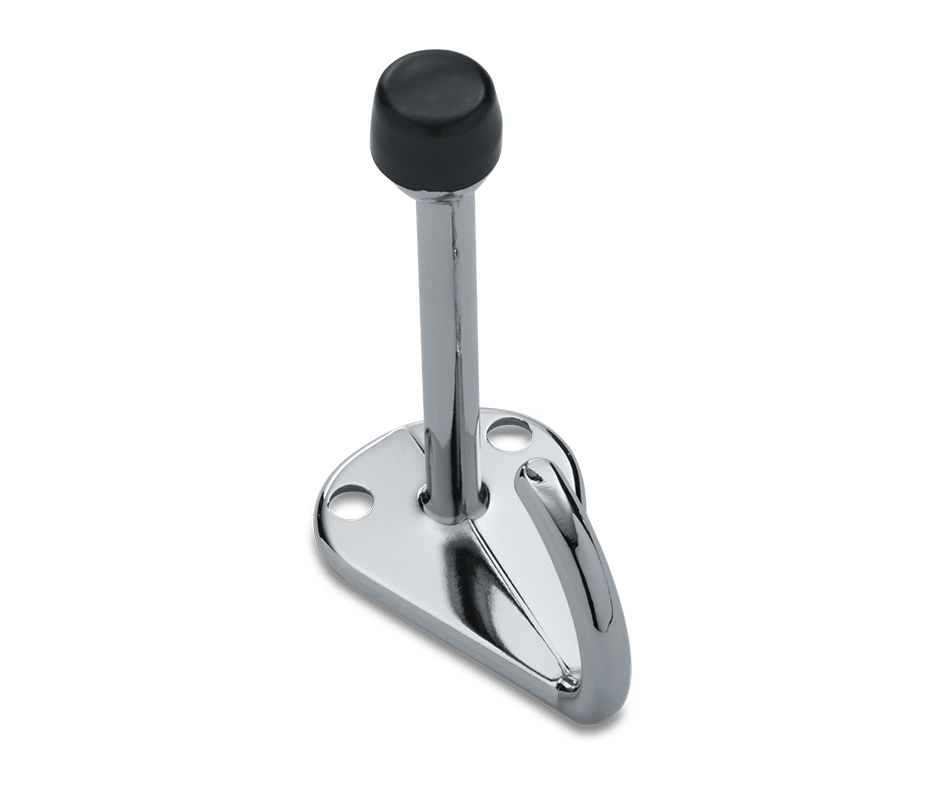

Zamac Bumper & Coat Hook for Powder Coated & Stainless Steel
Qty
Description
(1)
Bumper & Coat Hook
(2)
Screws #10 x 5/8"
Part Number
40-8511600G

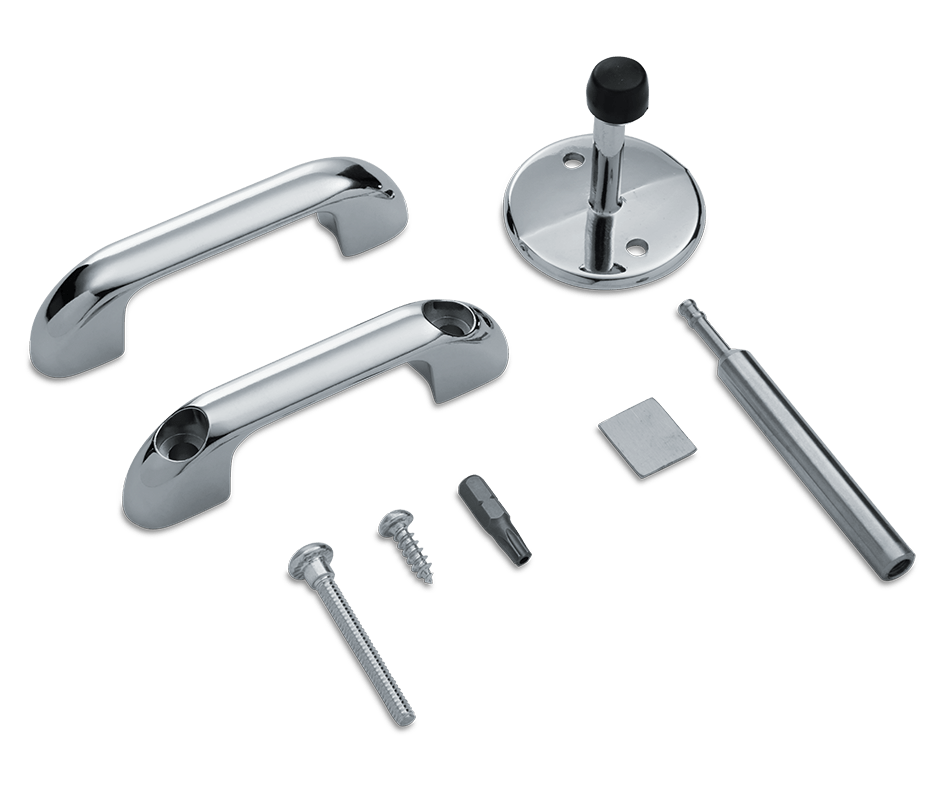

Chrome Plated Zamac Outswing ADA Adder Door Kit for Integrated Privacy Metal Partitions
Qty
Description
(2)
Chrome Plated Door Pulls
(2)
1-1/2" Step Bolts
(1)
Outswing Bumper
(2)
5/8" Screws
(1)
Pintorx Bit
(1)
Stainless Steel Pin
Part Number
40-85263100G
Chrome Plated Zamac Inswing No-Sight Slide Latch Door Kit for Integrated Privacy Metal Partitions
Qty
Description
(1)
No-Sight Latch Indicator
(1)
No-Sight Keeper
(1)
Bottom Hinge
(1)
Box Cam
(1)
Nut 5/16"
(1)
External Tooth Washer
(1)
Internal Tooth Washer
(1)
Nylon Pintel
(4)
Slide Latch
(2)
Step Bolts 1.-1/4"
(8)
Step Nuts 5/8"
(4)
Screws 5/8"
(1)
Coat Hook
Part Number
40-8511530G
Stainless Steel Outswing ADA Adder Door Kit For Integrated privacy Metal Partitions
Qty
Description
(2)
Stainless Steel Door Pulls
(2)
Step Bolts 1-1/2"
(1)
Outswing Bumper
(2)
Screws 5/8"
(1)
Pintorx Bit
(1)
Stainless Steel Pin
Part Number
40-8513510G
Stainless Steel Door Kit for Integrated Privacy Metal Partitions
Qty
Description
(1)
No-Sight Latch Indicator
(1)
No-Sight Keeper
(1)
Bottom Hinge
(1)
indicator Drive Pin
(1)
Bottom Hinge
(1)
Box Cam
(1)
Nut 5/16"
(1)
External Tooth Washer
(1)
Internal Tooth Washer
(1)
Nylon Pintel
(1)
Slide Latch
(4)
Step Bolts 1-1/4"
(2)
Step Bolts 1"
(8)
5/8" Step Nuts
(4)
5/8" Screws
(1)
Coat Hook
Part Number
40-8513500G
showers-miscellaneous-items

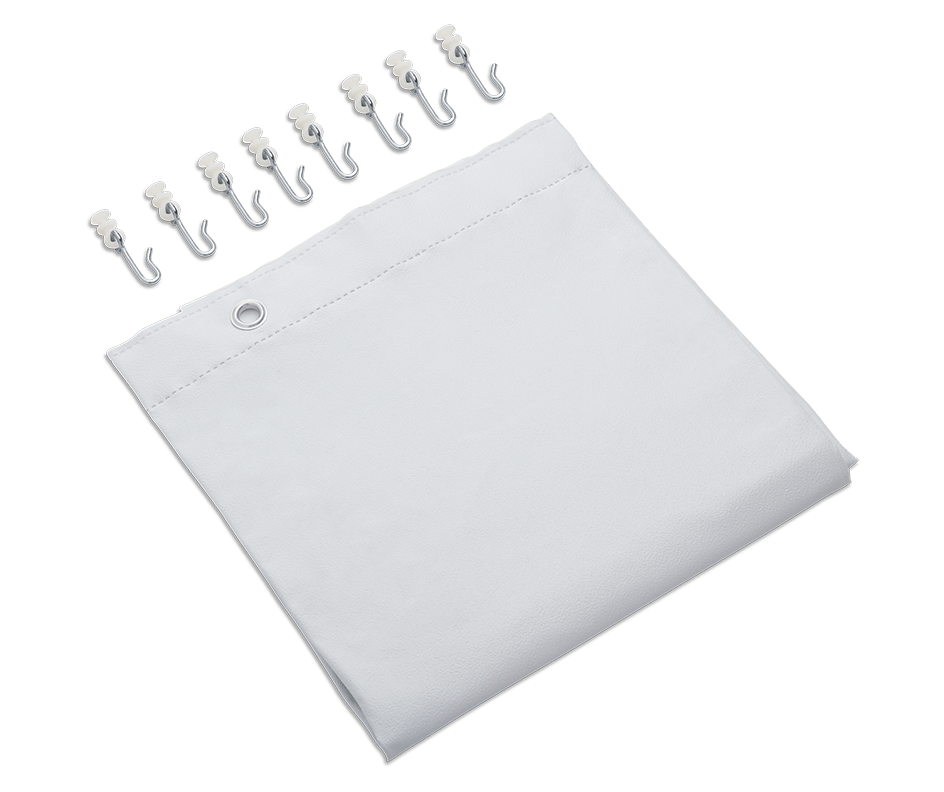

Shower Curtain Set 36"
Qty
Description
(1)
Vinyl Shower Curtain 36" x 76"
(1)
Set of Shower Curtain Hooks
Part Number
40-8981360

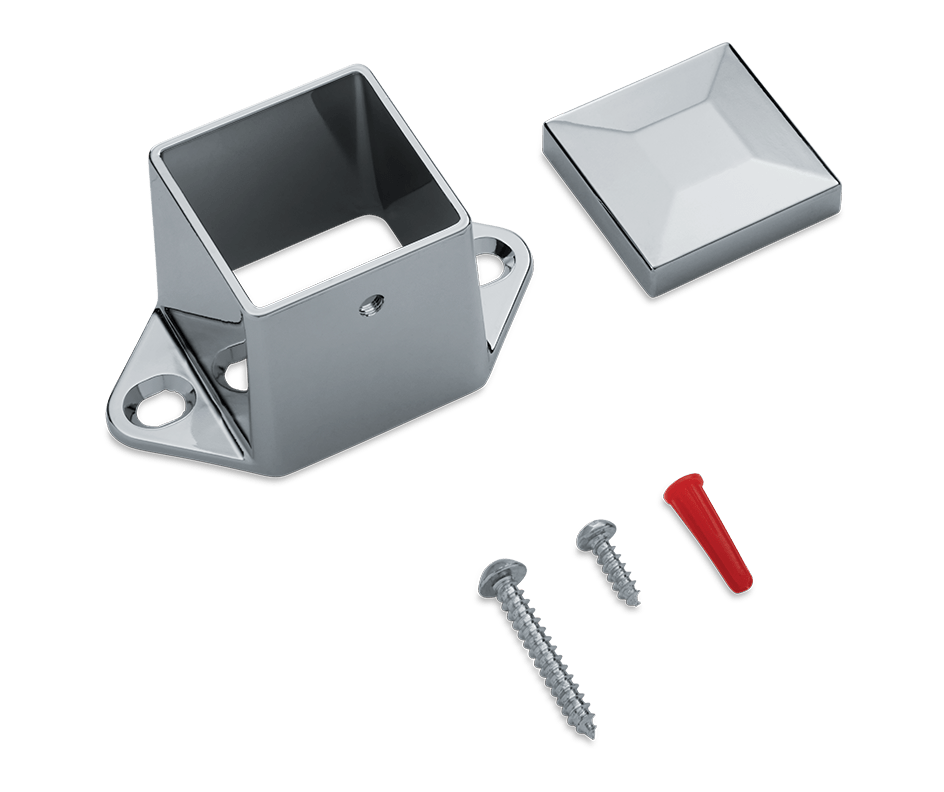

Aluminum Post Mounting Kit
Qty
Description
(1)
Post Cap
(1)
Post Shoe
(2)
Plastic Shields 14/16" x 1-1/2"
(2)
Screws #14 x 1-3/4"
(1)
Screw #10 x 5/8"
Part Number
40-8442510

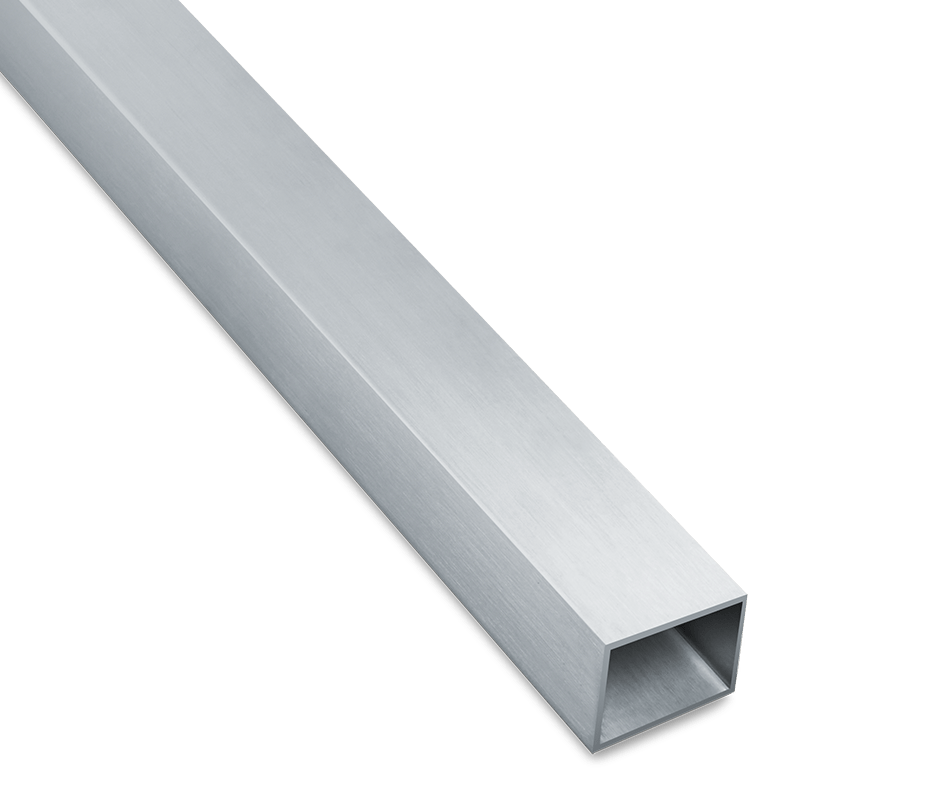

Aluminum Post
Qty
Description
(1)
1-3/4" Square x 10 Feet
Part Number
40-544340

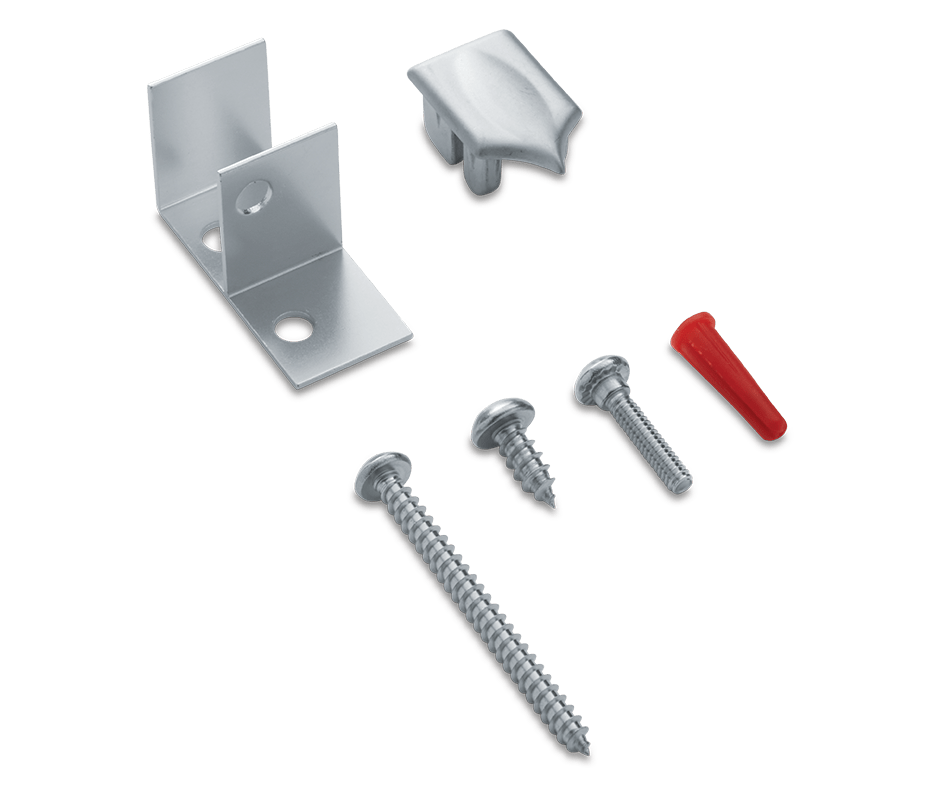

Headrail Return Kit All Products
Qty
Description
(1)
Satin "F" Bracket
(2)
Screws #14 x 2-1/2" Long
(2)
Plastic Shields 14/16" x 1-1/2"
(4)
Screws #14 x 5/8"
(2)
Headrail Cap
Part Number
40-8448100

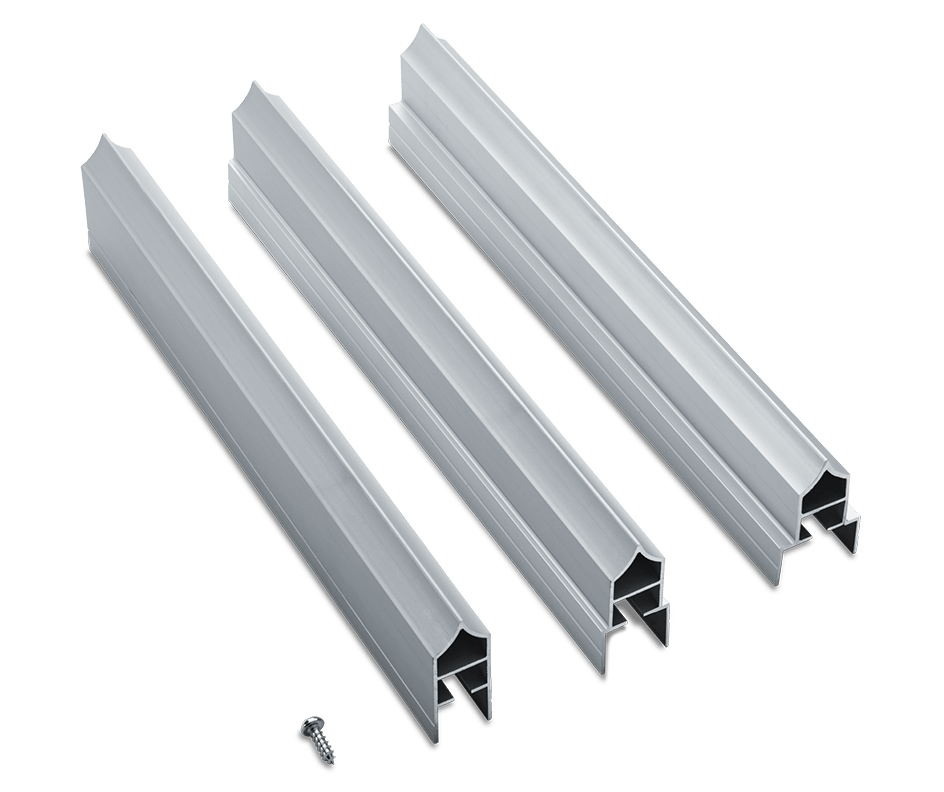

Anti-Grip Anodized Aluminum
Qty
Description
(1)
1" for Plastic Laminate
(1)
1" for Polymer Solid Plastic
(1)
3/4" for Phenolic
(1)
Lengths of 65" and 98" available for all product types
panels

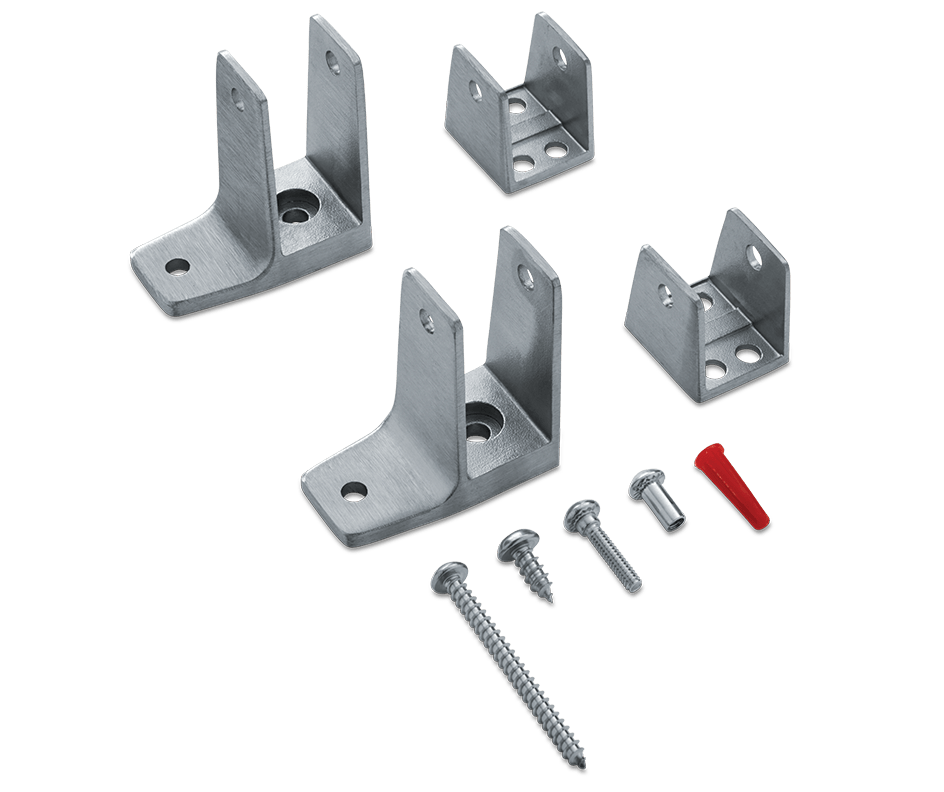

Stainless Steel One Ear Panel to Wall and Pilaster Set for Phenolic
Qty
Description
(2)
Stainless steel brackets one ear
(2)
Stainless steel "U" brackets
(4)
Screws #14 x 2-1/2"
(4)
Plastic shields 14/16 x 1-1/2"
(4)
Screws #14 x 3/4"
(4)
Step bolts 1/2"
(4)
Barrel nuts #10 - 24 x 3/8"
Part Number
#40-8275010

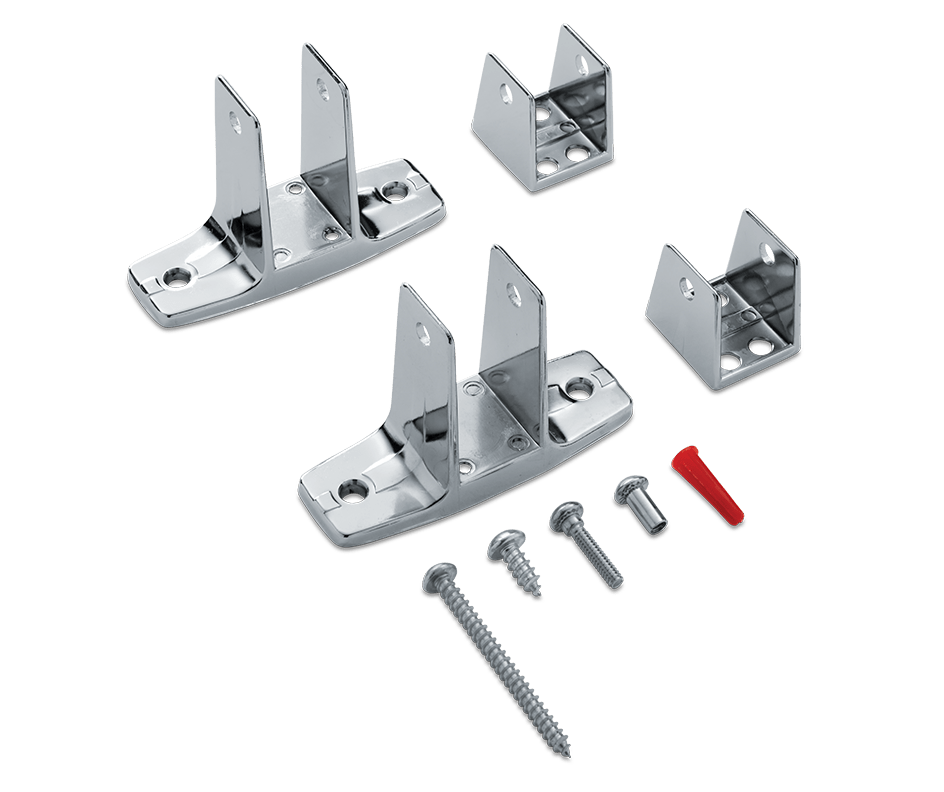

Zamac Two Ear Panel to Wall and Pilaster Set for Powder Coated, Stainless Steel or Plastic Laminate
Qty
Description
(2)
Zamac Brackets Two Ear
(2)
Zamac "U" Brackets
(4)
Screws #14 x 2-1/2"
(4)
Plastic Shields 14/16" x 1-1/2"
(12)
Screws #14 x 5/8"
(4)
Step Bolts #10-24 x 1"
(4)
Barrel Nuts #10 x 5/8"
Metal Part
40-8515040
Plastic Laminate Part
40-8515020

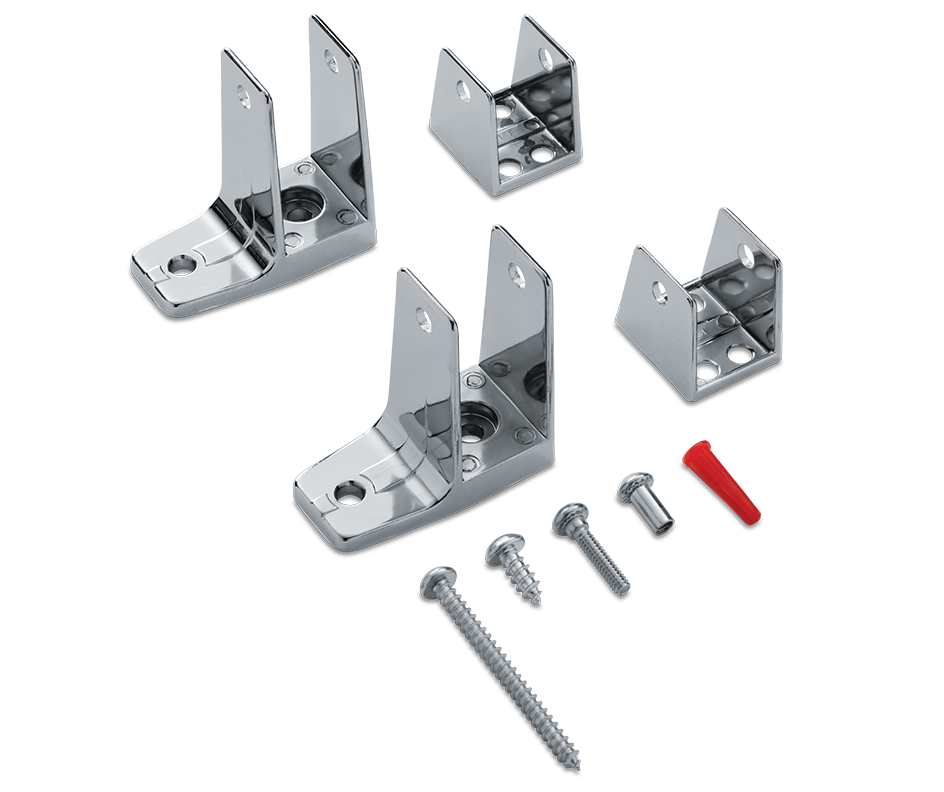

Zamac One Ear Panel to Wall and Pilaster Set for Powder Coated, Stainless Steel, or Plastic Laminate
Qty
Description
(2)
Zamac Brackets One Ear
(2)
Zamac "U" Brackets
(4)
Screws #14 x 2-1/2"
(4)
Plastic Shields 14/16 x 1-1/2"
(12)
Screws #14 x 5/8"
(4)
Step Bolts #10-24 x 1"
(4)
Barrel Nuts #10 x 5/8"
Metal Part
40-8515030
Plastic Laminate Part
40-8515010
pilasters

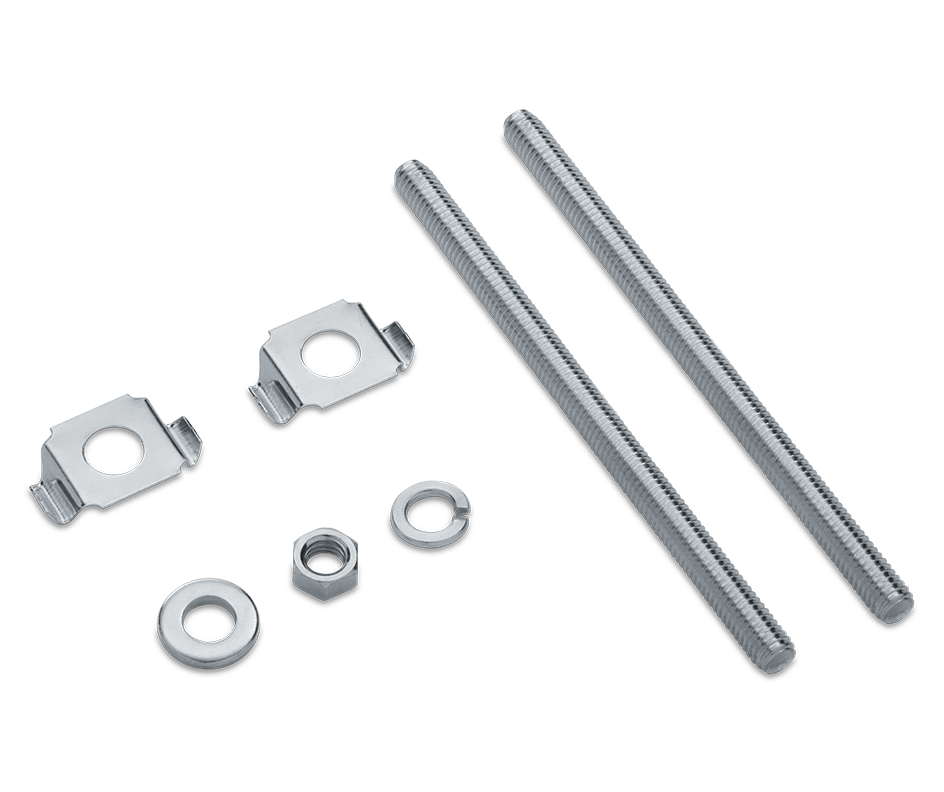

Ceiling Bolt Kit All Products
Qty
Description
(2)
Threaded Rod 6" x 3/8"
(6)
Flat Washers 3/8"
(6)
Lock Washers
(10)
Nuts 3/8"
(2)
Shoe Clips
Part Number
40-8988221G

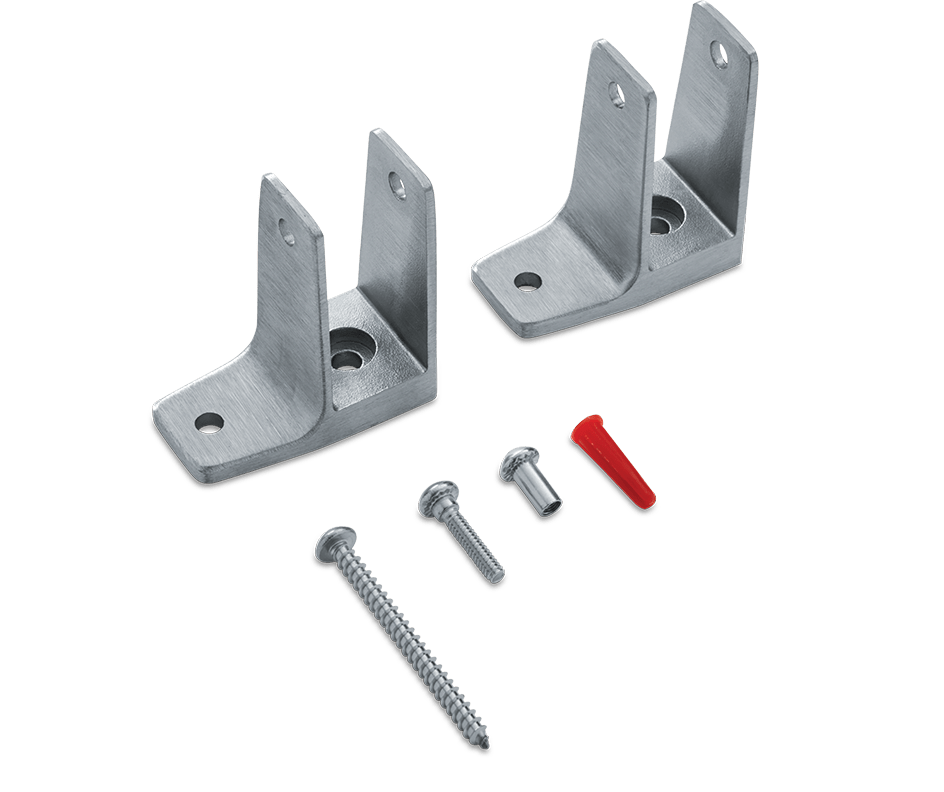

Stainless Steel End Pilaster to Wall Bracket Kit for Phenolic
Qty
Description
(2)
Stainless Steel Brackets One Ear
(4)
Screws #14 x 2-1/2"
(4)
Plastic Shields 14/16" x 1-1/2"
(2)
Step Bolts 3/4"
(2)
Barrel Nuts #10 - 24 x 1/2"
Part Number
40-8275210

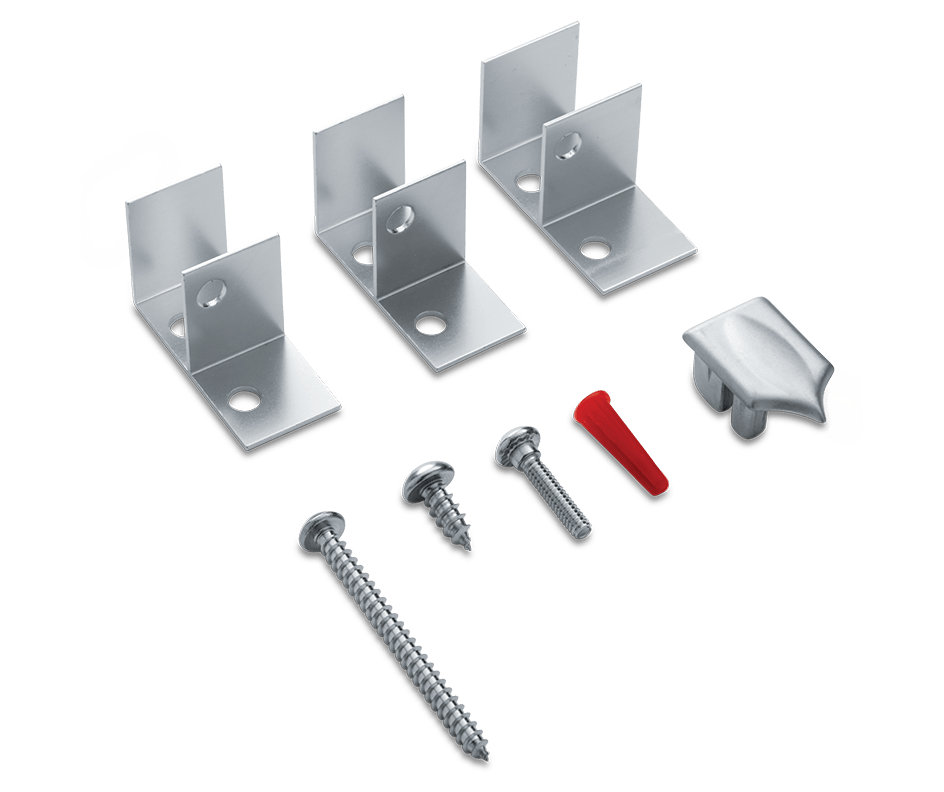

Aluminum Headrail Return Kit for Polymer Solid Plastic
Qty
Description
(3)
Aluminum Brackets One Ear
(6)
Screws #14 x 2-1/2"
(6)
Plastic Shields 14/16" x 1-1/2"
(3)
Step Bolts #10 - 24 x 1"
(3)
Barrel Nuts #10 - 24 x 5/8"
(8)
Screws #14 x 3/4"
Part Number
40-8445210

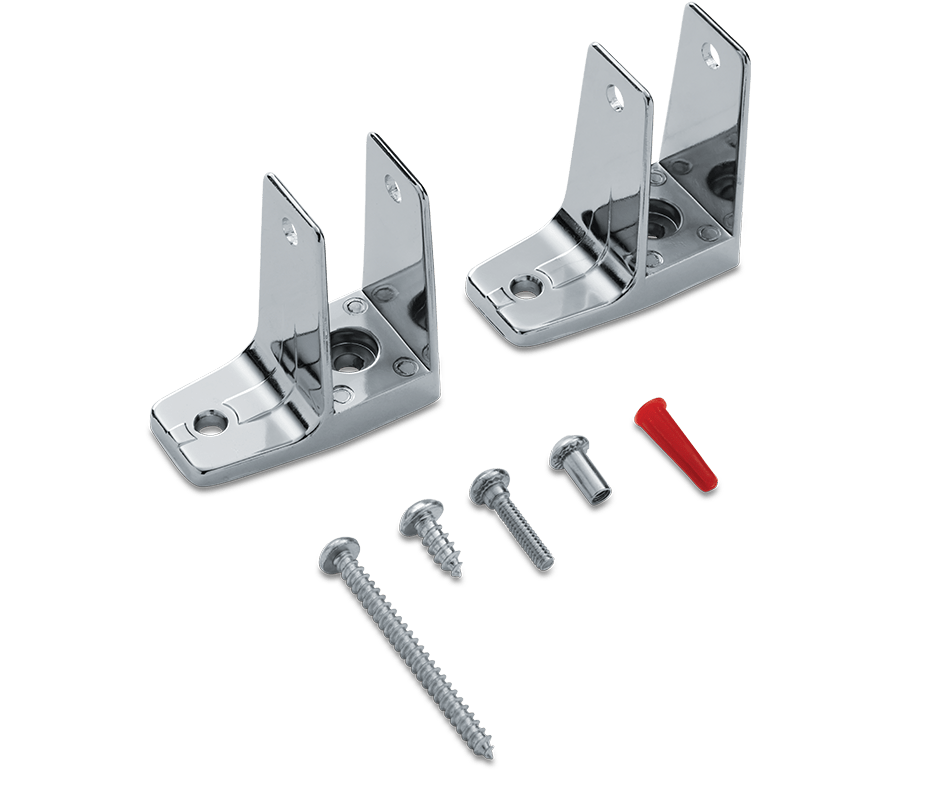

Zamac End Pilaster to Wall Bracket Kit for Powder Coated, Stainless Steel, and Plastic Laminate
Qty
Description
(2)
Zamac Brackets One Ear
(4)
Screws #14 x 2-1/2"
(4)
Plastic Shields 14/16" x 1-1/2"
(2)
Step Bolts 1-1/4"
(2)
Barrel Nuts #10 x 5/8"
(8)
Screws #14 x 5/8"
Metal Part
40-8515220
Plastic Laminate Part
40-8515210
urinal-screens

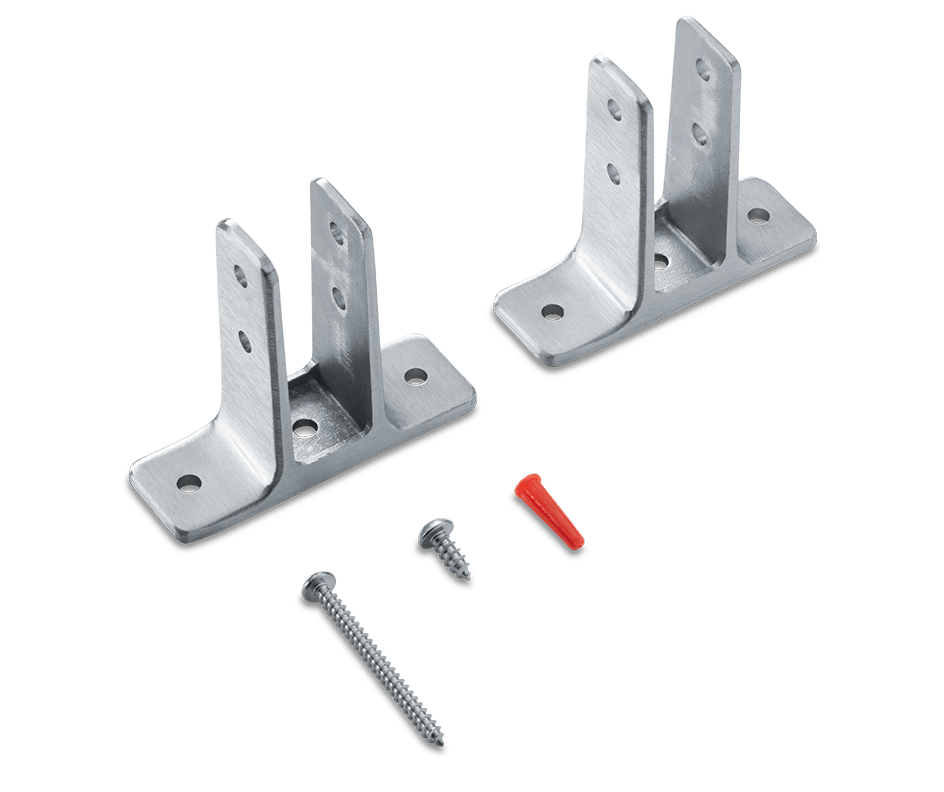

Stainless Steel Urinal Screen Bracket Kit for Phenolic
Qty
Description
(4)
Stainless Steel Angle Brackets
(4)
Screws #14 x 2.5"
(4)
Plastic Shields 14/16" x 1-1/2"
(4)
Step Bolts 1/2"
(4)
Barrel Nuts #10 - 24 x 5/8"
Part Number
40-8271480

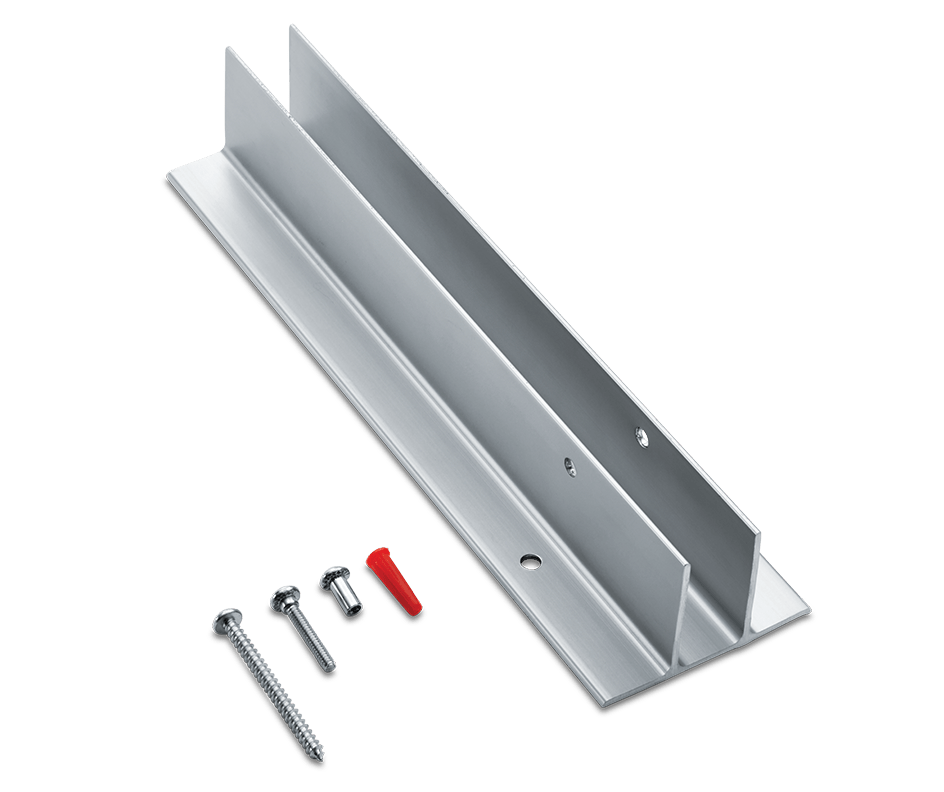

Aluminum Full Height Urinal Screen Bracket Kit for Powder Coated, Stainless Steel, Plastic Laminate, and Polymer Solid Plastic
Qty
Description
(1)
Aluminum Bracket 38" Long Two Ear
(8)
Screws #14 x 2-1/2"
(8)
Plastic Shields 14/16" x 1-1/2"
(4)
Step Bolts #10 - 24 x 1"
(4)
Barrel Nuts #10 - 24 x 5/8"
Part Number
40-8449000

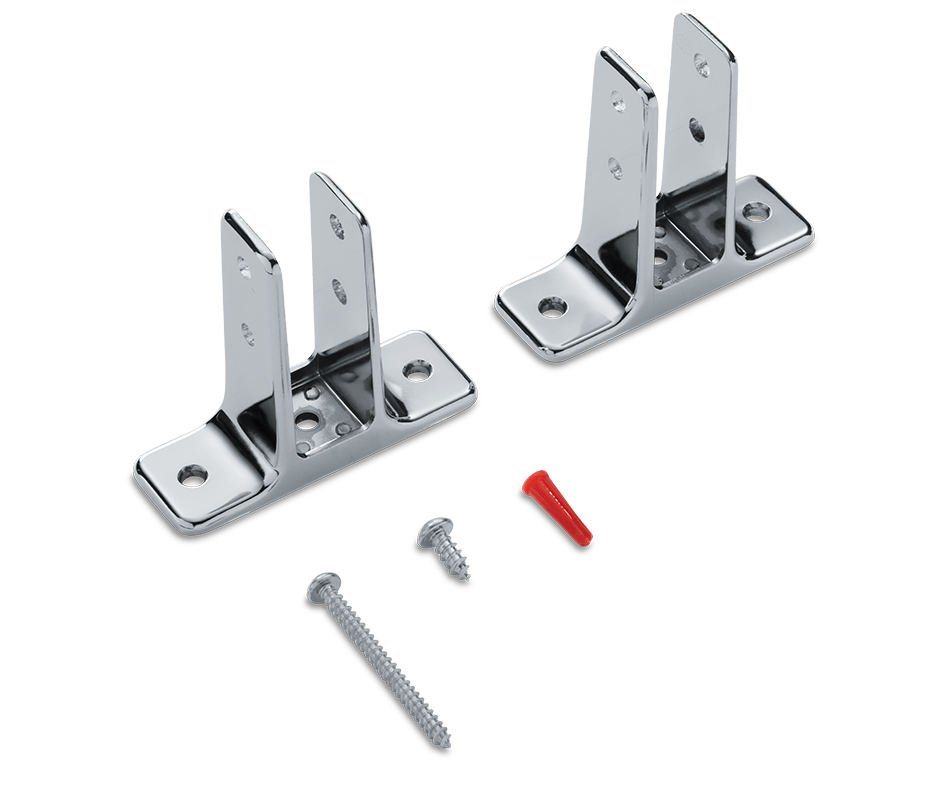

Zamac Urinal Screen Bracket Kit for Powder Coated, Stainless Steel, and Plastic Laminate
Qty
Description
(2)
Zamac Brackets Two Ear
(4)
Screws #14 x 2-1/2"
(4)
Plastic Shields 14/16" x 1-1/2"
(8)
Screws #14 x 5/8" Long
Part Number
40-8511281
