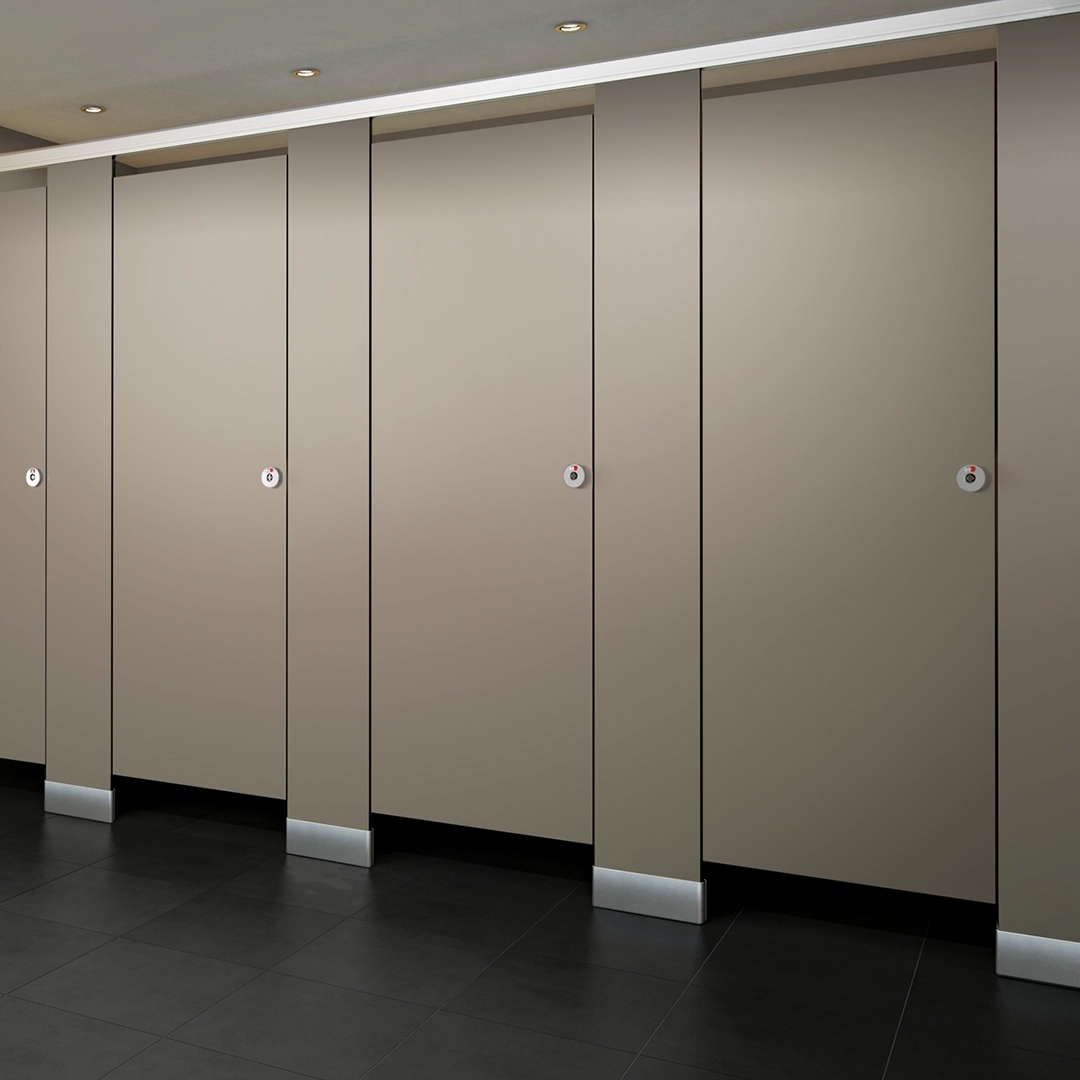

Black Core
Phenolic

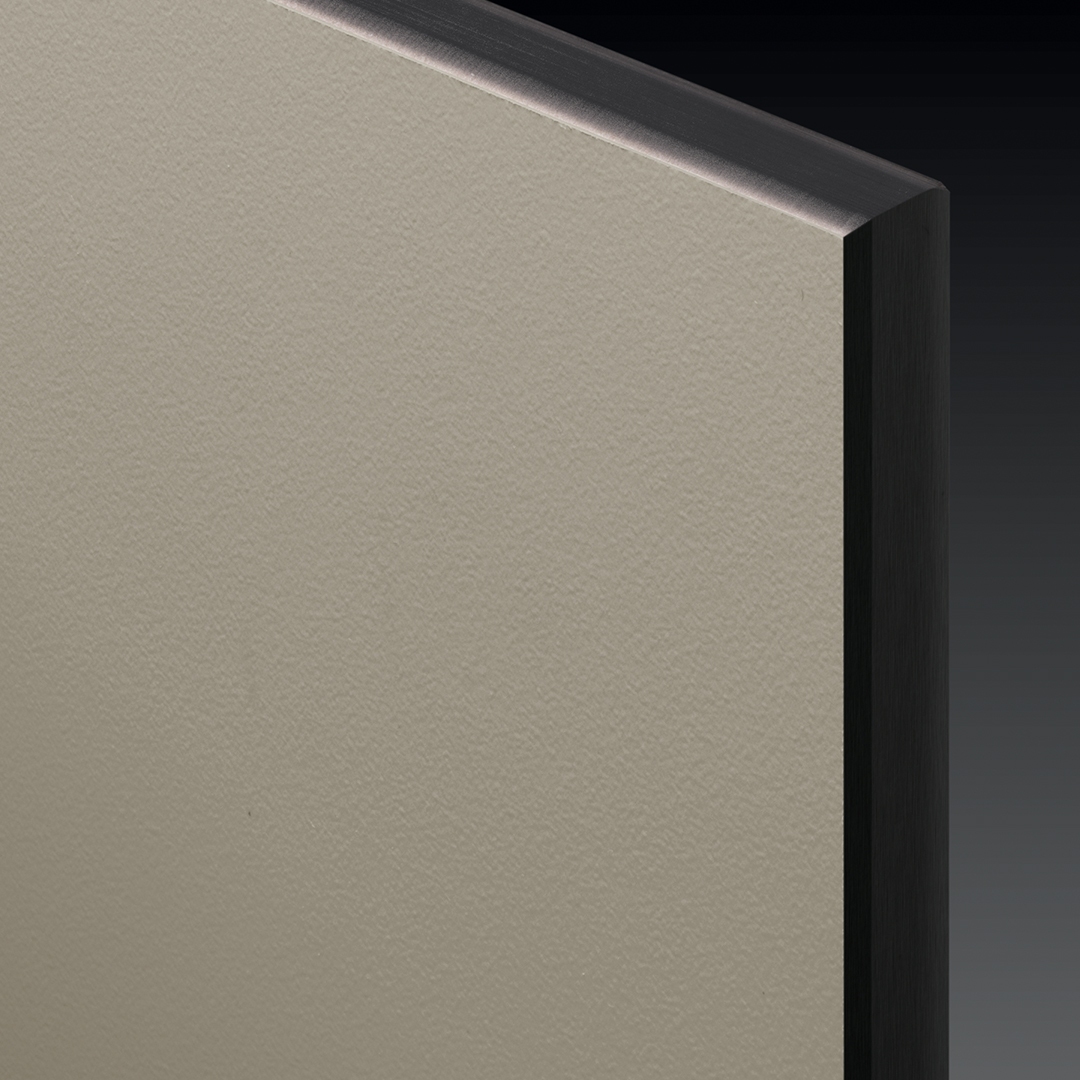

Black Core Phenolic partitions sheets are fused at high temperature and pressure. In addition to strength and serviceability, a wide range of colors provides limitless design flexibility. Class “B” Fire Rated Material standard.
Options:
- Continuous Piano Hinges
- Continuous Anodized Aluminum and Stainless Steel Brackets
- Custom Colors
- No-Sight Privacy Strips
- Class “A” Fire Rated Material

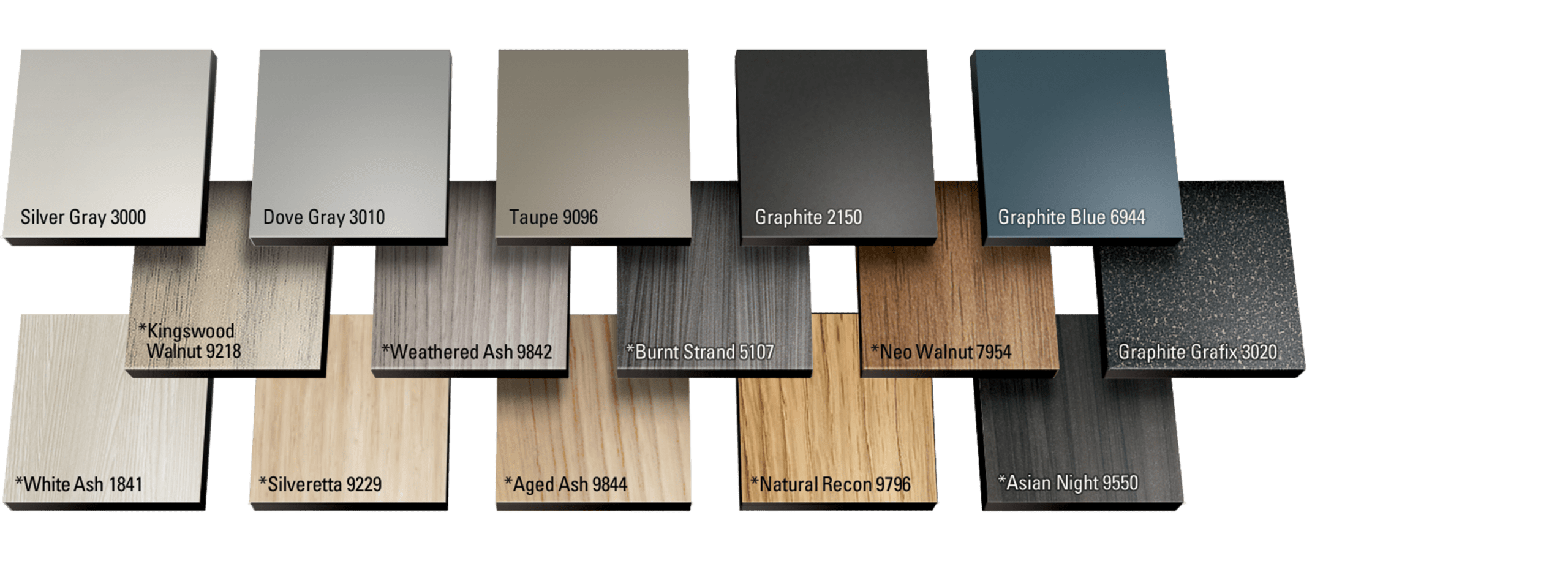

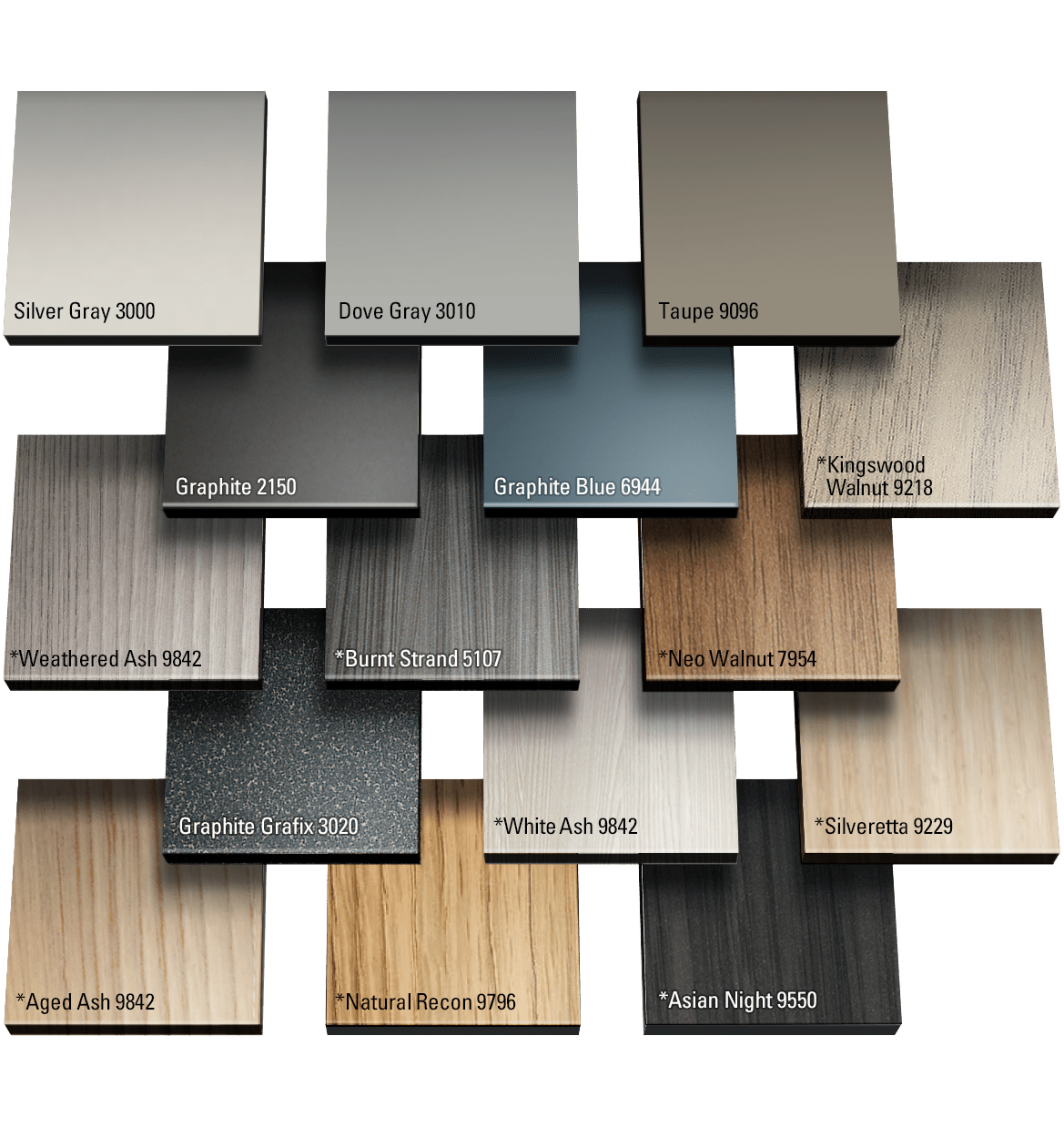

Black Core Phenolic Color Selection
*Directional Pattern—Pattern on panels over 60″ wide will run perpendicular to pattern on doors and plasters. Patterns shown cropped from full size sheet, contact us for additional references.
Consult color card for more definitive color matching.
Due to variances among color monitors the colors that appear on your screen may not be exact.
If color is important you must request samples prior to ordering.
Colors are subject to change without notice.
Styles

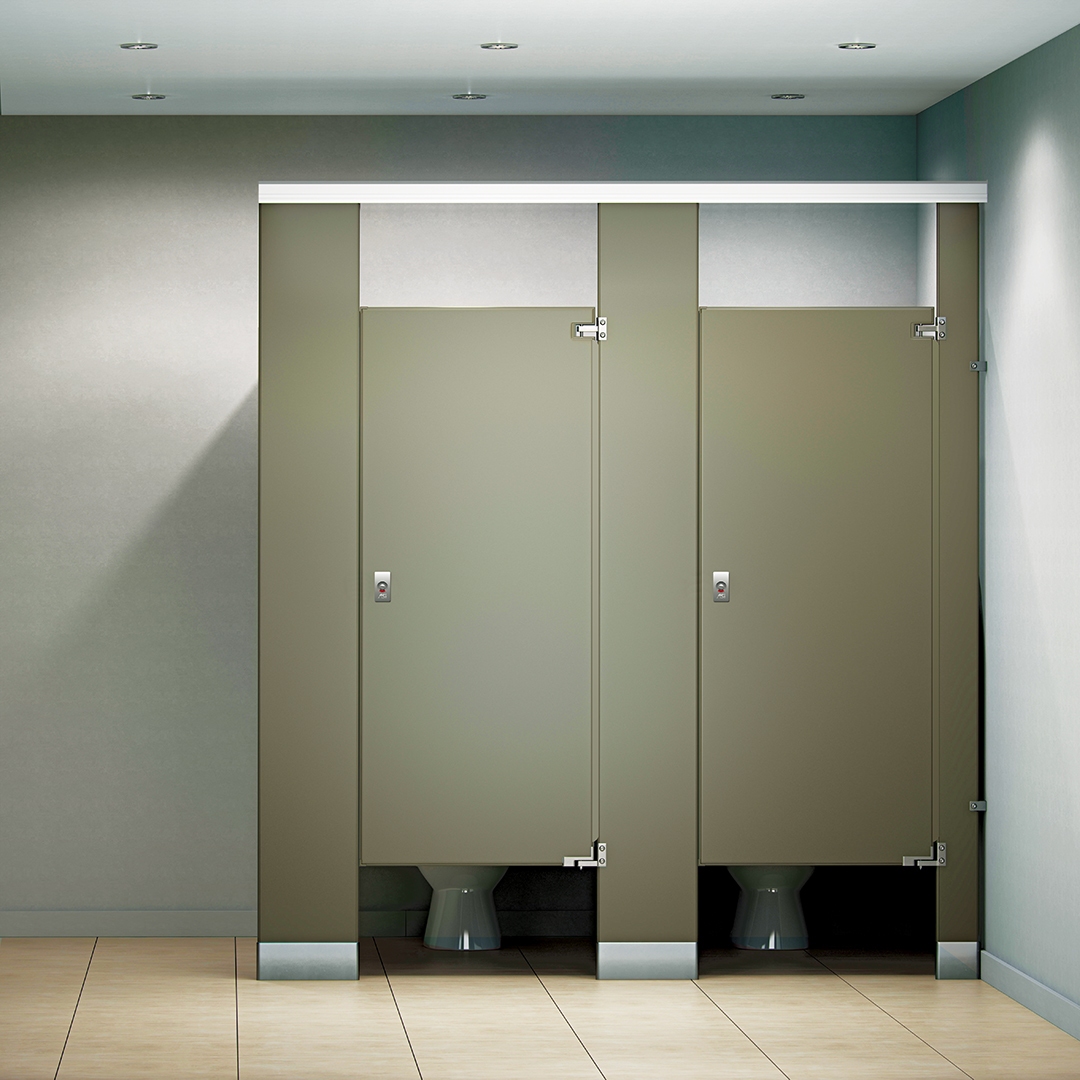

Floor Anchored/Overhead Braced
This economical and sturdy mounting style installs just about anywhere. An anodized aluminum anti-grip head rail secures partitions firmly to the walls.

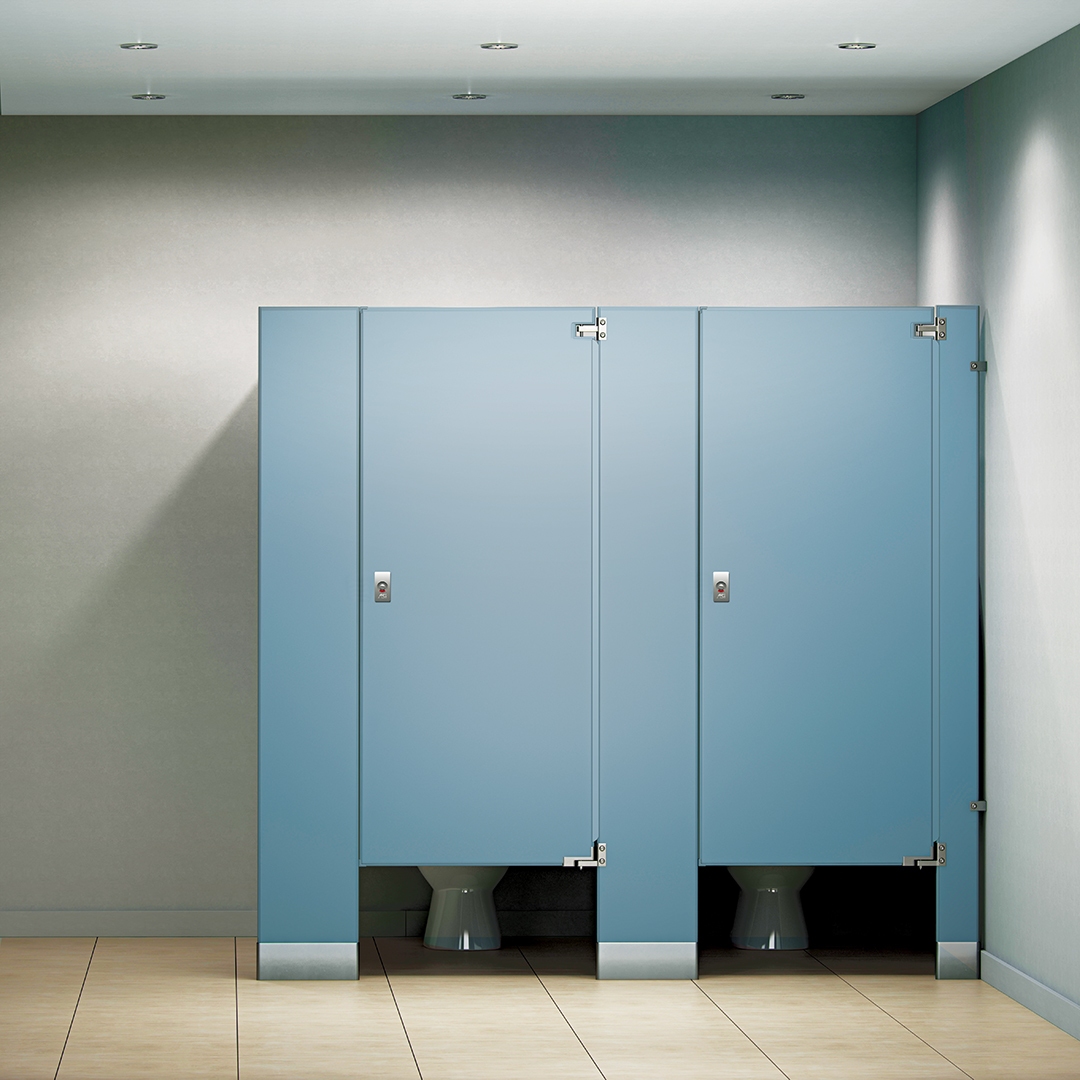

FloorAnchored
Simplified construction permits ease of installation anywhere. For concrete floors only: 2" minimum penetration into floor required.

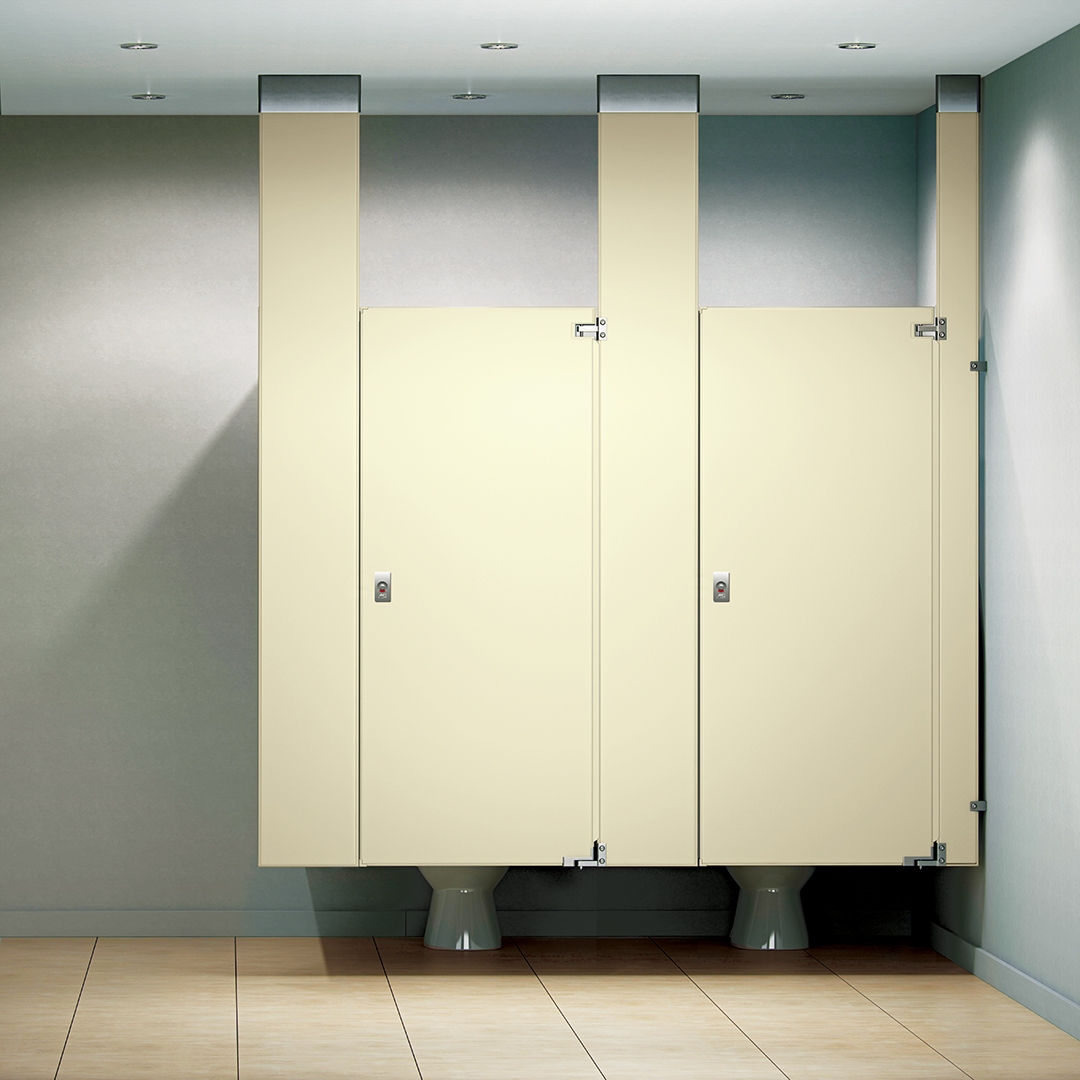

CeilingHung
When used together with wall-hung fixtures, the entire floor is accessible for efficient cleaning. Structural steel ceiling supports are necessary to assure proper installation.

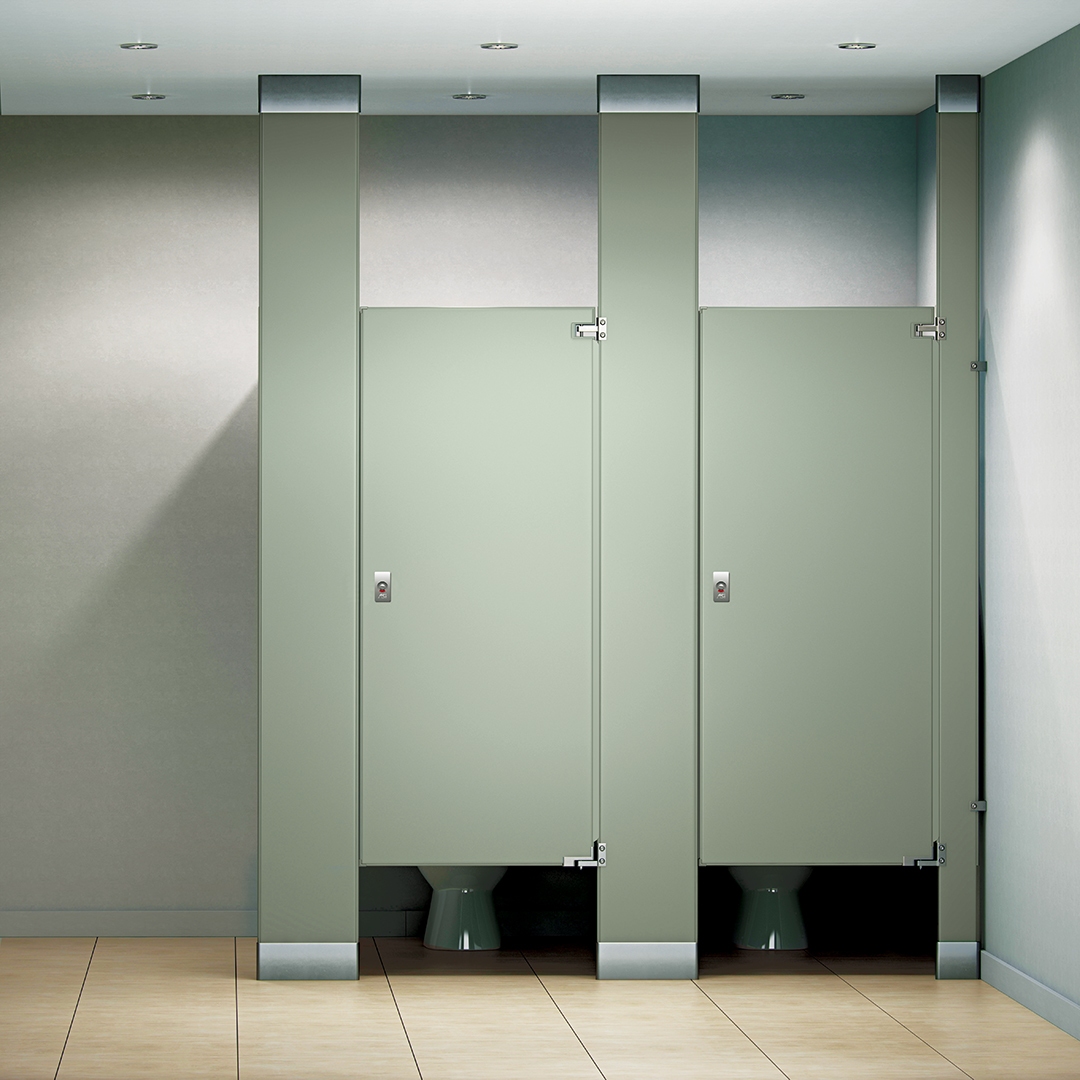

Floor to CeilingAnchored
This mounting style is extremely stable and durable as pilasters are anchored into both the concrete floor and the structural ceiling support.

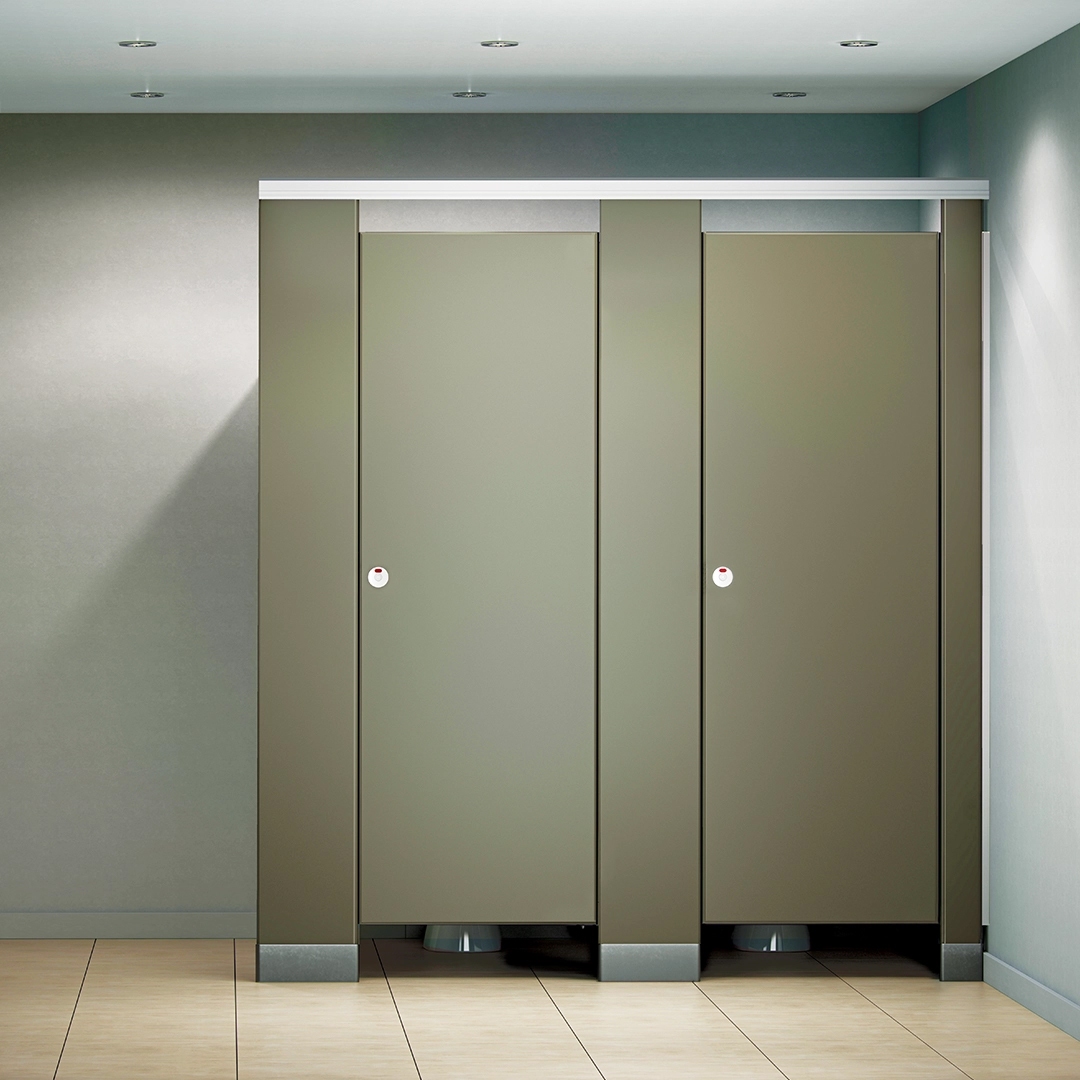

UltimatePrivacy™
Phenolic partitions are strong, durable and feature doors and panels up to 72" high. Self-Closing rebated doors overlap to remove any sightlines into the stall to ensure privacy.Hardware

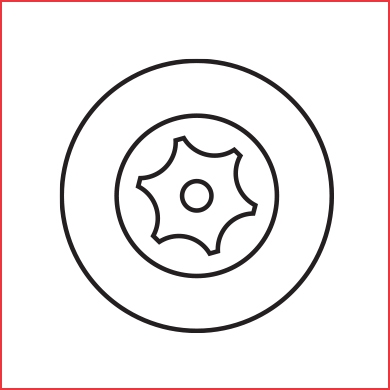

Vandal-Resistant Fasteners
Special driver installs fasteners, which virtually eliminates unauthorized removal and ensures easy installation.

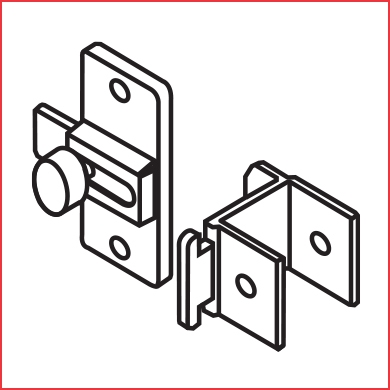

Emergency Access
Meets ADA requirements. Slotted keeper coupled with gravity hinges allows access in an emergency.

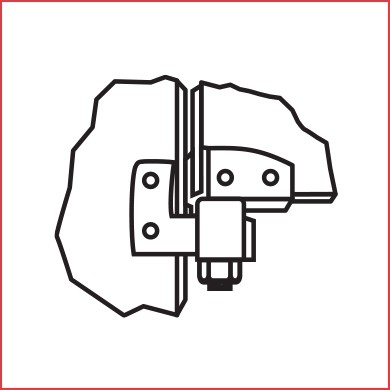

Vault Hinge
Rugged, attractive wrap-around hinge. Extra strong for heavy-duty installations.

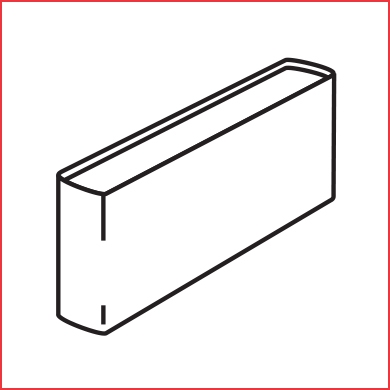

Shoe Construction
One-piece stainless steel, type 304, with #4 satin finish trim shoes are hemmed top and bottom for rigidity and sleek appearance.

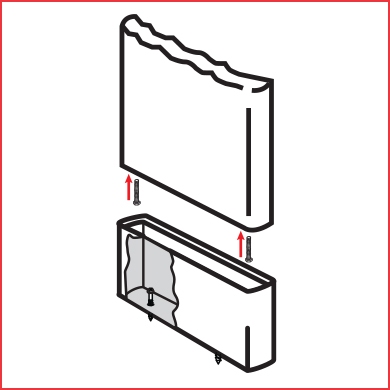

Easy-Stall Shoe
For floor anchored overhead braced.
Easily adjusted leveling bolt.
True concrete anchor screws designed for lasting holding power.
Anchor rated at 2770 lbs. pullout strength.
Fabricated of type 304 stainless steel.

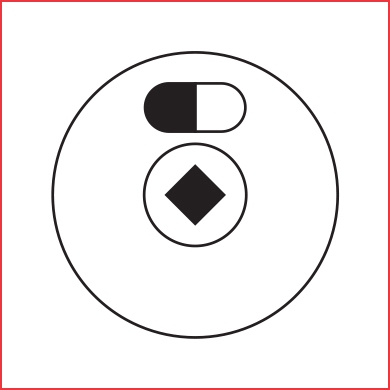

Occupancy Indicator
Occupancy latch with an emergency access capability indicates when stall is occupied.
Applicable to Phenolic partitions.

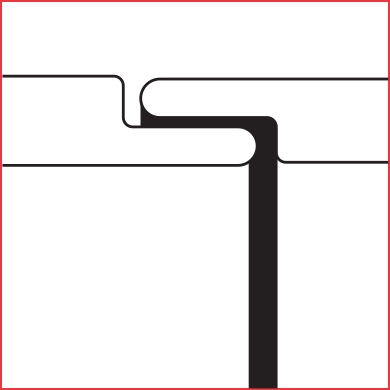

Flush Finish Self-Closing Doors
All of our self-closing doors and pilasters meet in a flush finish with routed, overlapping closures for guaranteed privacy.
Applicable to Phenolic and Solid Plastic partitions.
